“Our Sub-Zero 600 Series was warm on the freezer side. They proved it was the sealed system on that compressor with gauges before any work, then brought it back to spec. Honest about repair-versus-replace on a unit this age, and it runs like new now.”
Model guide · Redwood City
Sub-Zero 600 Series Repair & Troubleshooting in Redwood City
The 600 Series is the classic dual-compressor built-in behind many Peninsula kitchens, and most of its age-related faults — condenser, fans, defrost, and one-side cooling — are very much worth repairing rather than replacing.
$89 call, waived with repair 365-day labor warranty Genuine OEM parts
Quick answer. The Sub-Zero 600 Series is a dual-compressor built-in with separate sealed systems for the refrigerator and freezer, so one side can run warm while the other stays cold. On 15-to-25-year-old units, the usual culprits are a dust-packed condenser, a tired evaporator or condenser fan, a defrost fault, or a sealed-system issue on a single side. We prove the cause with real readings, then quote in writing. The $89 diagnosis is waived when you book the repair.
The 600 Series: a dual-compressor classic still worth keeping
Sub-Zero's 600 Series defined the built-in, panel-ready refrigerator for a generation of upper-end kitchens, and plenty of them are still in daily service across Redwood City — from Emerald Hills and Farm Hills estates to remodeled downtown and Friendly Acres homes. Its defining feature is two independent compressors and two sealed systems: one dedicated to the fresh-food side, one to the freezer. That design keeps odors separated and humidity high in the refrigerator, and it is also why a 600 can fail on one side while the other keeps humming along.
Because these units are robustly built, age shows up first in the wear items — fans, defrost components, gaskets, and the condenser — long before the cabinet or the cooling architecture gives out. That is exactly why a 600 Series is so often a strong candidate for repair: the bones are excellent, and a model-correct fix can return it to its original specification for a fraction of the cost of a new built-in and a cabinetry rework.
600 Series models and the faults we see most
The 600 line spans full-size over-and-under refrigerator/freezers and side-by-side configurations. The table below maps the common members of the family to their layout and the issues we most often diagnose on Peninsula units.
| Model | Configuration | Common issues we repair |
|---|---|---|
| 632 | Over-and-under built-in, fridge over freezer | Defrost faults, evaporator fan, drain icing, door gaskets |
| 642 / 650 | Over-and-under with ice & water | Condenser buildup, fan motors, freezer side warming, ice maker |
| 695 | Side-by-side, largest 600 Series, dual compressor | Dual-defrost timing, sensor drift, gasket and seal wear |
| 690 | Side-by-side, dual compressor | One-side warm, condenser fan, freezer defrost, control faults |
| 611 / 601 | Compact and all-refrigerator variants | Single-system cooling drift, fan, thermistor, drain |
Not sure which 600 you have?
The model and serial tag is usually inside the fresh-food compartment, on the upper side wall or near the top grille. Reading it correctly lets us arrive with the right genuine OEM Sub-Zero parts the first time instead of guessing.
Dual-compressor logic — why one side fails on its own
On a single-compressor refrigerator, a warm freezer and a warm fridge usually share one root cause. The 600 Series is different: each side has its own compressor, evaporator, and defrost circuit, so a freezer that climbs while the refrigerator stays perfectly cold points squarely at the freezer's own system — its evaporator fan, its defrost heater or termination sensor, or that side's sealed system. The reverse is just as true.
This separation is a gift for diagnosis when it is read correctly. By isolating which side is affected and confirming whether the compressor on that side is even running, we narrow the problem fast. A freezer that frosts over and then warms is a classic defrost story; a refrigerator side that drifts up slowly with the condenser fan straining is often airflow and buildup. We confirm with electrical and, where warranted, pressure readings rather than swapping parts hopefully.
- Freezer warm, fridge cold: freezer-side defrost, evaporator fan, or that sealed system
- Fridge warm, freezer cold: refrigerator-side fan, sensor, or airflow blockage
- Both warm at once: condenser, shared airflow, or a control reading worth confirming
- Frost then warming: defrost heater, termination sensor, or timer on that side
- Long run times with weak cooling: condenser buildup or a struggling sealed system
Repair vs. replace on a 15-to-25-year-old 600 Series
When a 600 is two decades old, the honest question is whether to fix it or replace it, and we answer it straight. A condenser clean, a fan motor, a defrost component, a sensor, or a fresh set of gaskets are sensible, high-value repairs that can add many good years — especially given that a comparable new built-in plus cabinetry adjustments runs into the thousands. We will tell you when the math favors repair, which on a sound 600 cabinet is most of the time.
Where we slow down is a true sealed-system failure on one side of an older unit. That is a major repair, and we will not recommend it on a guess. We take real pressure and electrical readings first, explain what we found, and lay out the realistic cost so you can decide with full information. Every repair uses factory-certified, genuine OEM Sub-Zero parts matched to your model and serial, and labor is backed by our 365-day warranty.
Pricing and warranty at a glance
Diagnosis is a flat $89 service call, waived when you book the repair. You get a written quote before any work begins, we install genuine OEM Sub-Zero parts, and all labor carries a 365-day warranty.
Why a Sub-Zero specialist for a 600 Series
A 600 Series rewards experience. The two sealed systems, the dual-defrost timing, the panel-ready cabinetry, and the parts that are specific to this older generation all reward a technician who has worked on built-in and integrated Sub-Zero units for years rather than a generalist meeting one for the first time. We pull and reseat these units carefully so custom panels and surrounding cabinetry are never stressed, and we match every part to your exact model.
Our focus is independent, sealed-system diagnostics for Sub-Zero on the Peninsula — the kind of deep, hands-on experience that tells a one-side defrost fault from a sealed-system problem before a part is ordered. That precision is what keeps a 600 Series running true and keeps a repair bill honest.
Upfront pricing
Sub-Zero repair pricing in Redwood City
The $89 service call is waived with your repair, and all labor is covered for 365 days.
| Sub-Zero service in Redwood City | Typical range | Time | Notes |
|---|---|---|---|
| Diagnostic / service call | $89 — waived with repair | 45–90 min | Model read, temps, airflow & visual checks |
| Door gasket / frost-line | $400–$900 | 1–3 h | Gasket availability; common humidity-related wear |
| Ice maker / water line | $275–$850 | 1–3 h | Inlet valve, fill tube, or ice module |

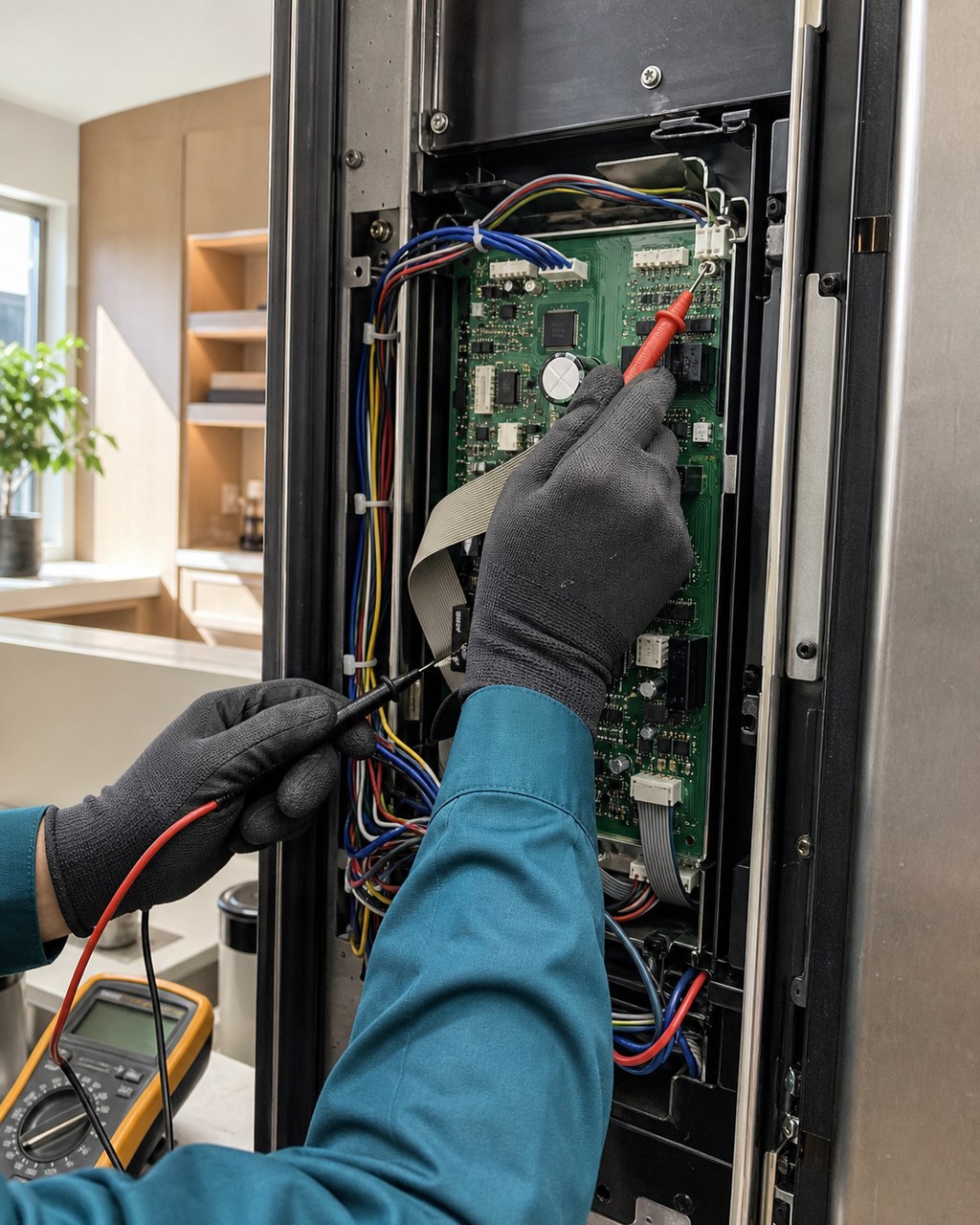

| Control board / sensor | $350–$1,250 | 1–4 h | Quoted after electrical proof |
| Compressor / sealed system | $1,450–$3,600 | 2–6 h + parts | Requires pressure & electrical evidence |
Draft ranges for planning; the final quote depends on model, parts, access, and the on-site diagnosis. The $89 service call is waived when you book the repair, and all labor carries a 365-day warranty.
Straight answers
Quick answers
Is a Sub-Zero 600 Series worth repairing?
Usually yes. The 600 cabinet and cooling architecture are excellent, so fans, defrost parts, sensors, gaskets, and condenser work are high-value repairs that add years for far less than a new built-in plus cabinetry. We give honest repair-versus-replace guidance after a real diagnosis.
Why is one side warm and the other cold?
The 600 Series uses two compressors and two sealed systems, so each side cools independently. A warm freezer with a cold fridge points to the freezer's own defrost, fan, or sealed system, not the whole unit. We isolate the affected side and confirm before any repair.
What does a 600 Series repair cost?
Diagnosis is a flat $89, waived when you book the repair. Fan, defrost, sensor, and gasket repairs fall in the lower ranges; single-side sealed-system work costs more. You always get a written quote first, and labor is covered for 365 days.
How soon can you come out?
Same-day and next-day appointments are usually available for Redwood City and the nearby Peninsula, depending on the day. Having your 600 Series model and serial number ready helps us bring the right genuine OEM parts on the first trip.
Reviews
600 Series, back to spec
“Our 600 Series side-by-side stopped holding temperature on the fridge half. They replaced an evaporator fan and a sensor with genuine parts and cleaned the condenser, and it has been steady since. The $89 diagnostic was credited to the repair.”
“Our built-in Sub-Zero was running warm on the fridge side but fine in the freezer. The tech traced it to the sealed system, showed me the pressure readings, and had it holding temperature again. The $89 service call was credited to the repair and the labor is covered for a year — exactly what was quoted.”
Related Sub-Zero help
FAQ
Frequently asked questions
How do I troubleshoot a Sub-Zero 600 Series that isn't cooling right?
Start by noting which side is affected, since the 600 has two compressors and two sealed systems. A warm freezer with a cold fridge points to the freezer's defrost, fan, or sealed system; a warm fridge with a cold freezer points to that side. Check that the condenser at the base is clean and airflow is not blocked. Then book a diagnosis — we confirm the exact cause with real readings before quoting.
What does a Sub-Zero 632 or 690 commonly need?
On a 632, we frequently address defrost faults, evaporator fan motors, drain icing, and worn door gaskets. The side-by-side 690 more often shows one-side warming, a tired condenser fan, freezer-side defrost issues, and control faults. Both are dual-compressor designs, so we diagnose each side independently and fit genuine OEM Sub-Zero parts matched to your serial number.
Why does my 600 Series freezer frost over and then warm up?
That pattern is a classic defrost problem on the freezer side. When the defrost heater, termination sensor, or timer fails, frost builds on the evaporator until it blocks airflow, and the freezer slowly warms even though the compressor runs. It is a well-understood, repairable fault. We verify the defrost circuit electrically and replace only the component that has actually failed.
Is dual-compressor design a reason these units last?
Yes. Separating the refrigerator and freezer into two sealed systems keeps food fresher, isolates odors, and means a fault on one side does not take down the whole unit. It also makes diagnosis cleaner, because we can isolate which system is affected. That durability is a big part of why a sound 600 Series is so often worth a model-correct repair.
Do you use genuine Sub-Zero parts on older 600 units?
Always. We install factory-certified, genuine OEM Sub-Zero parts matched to your specific 600 Series model and serial number, including generation-specific fans, defrost components, sensors, and gaskets. Correct parts matter most on an older unit, because a near-match substitute can run out of spec and create the next problem rather than solving the current one.
My 600 Series is over 20 years old — should I just replace it?
Not necessarily. The 600 cabinet and cooling design hold up well, so condenser, fan, defrost, sensor, and gasket repairs are usually smart given that a new comparable built-in plus cabinetry runs into the thousands. The one place we pause is a true single-side sealed-system failure, which is a major job. We diagnose with real readings and give you honest numbers so you can decide.
Do you service 600 Series units across Redwood City and nearby cities?
Yes. We cover all of Redwood City — the Emerald Hills, Farm Hills, and Mount Carmel hillsides, the Redwood Shores bayfront, and downtown and Friendly Acres homes — plus San Carlos, Belmont, Menlo Park, Atherton, Woodside, and Foster City. We handle panel-ready 600 units carefully so cabinetry is never stressed during service.
Book your Sub-Zero repair in Redwood City
Call (650) 800-5431 for a same-day or next-day visit, or book online. $89 service call, waived with your repair.
