“There was a loud buzzing whenever the door closed. They diagnosed it as a failing condenser fan, not the compressor I feared, and the repair was a fraction of what I expected. Honest people who clearly know Sub-Zero inside and out.”
Sealed-system service · Redwood City
Sub-Zero Sealed System & Compressor Repair in Redwood City

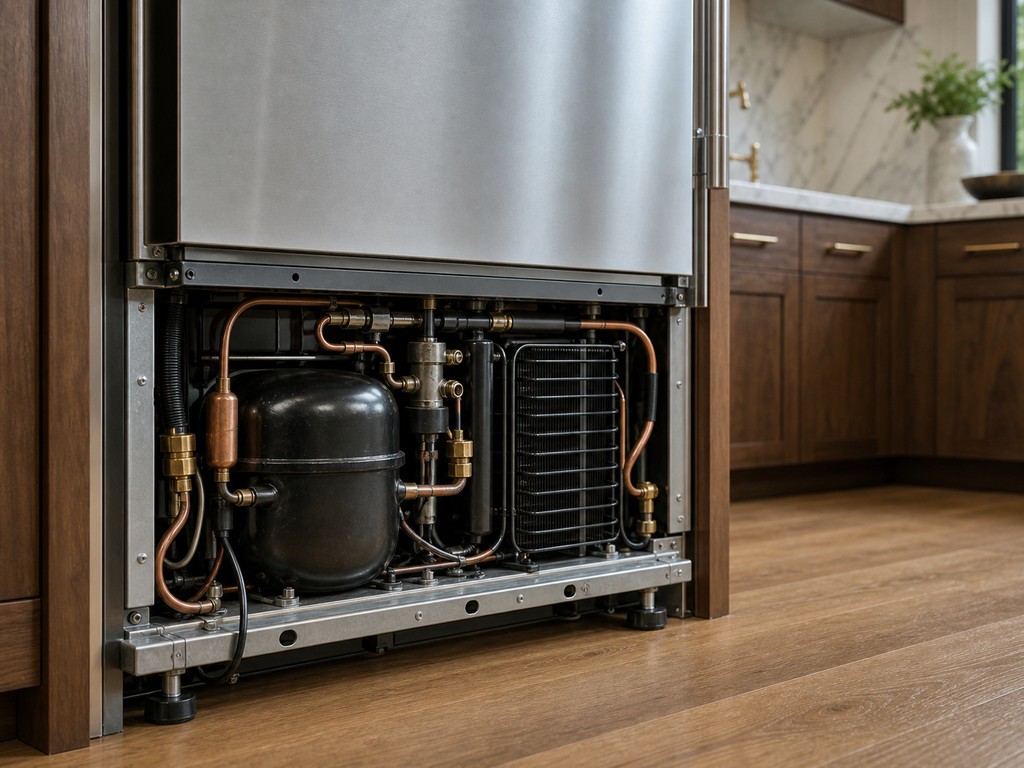

The sealed system is the heart of a built-in Sub-Zero — compressor, evaporator, condenser, and refrigerant. We diagnose it with real pressure and electrical readings, never guesses, then tell you honestly whether repair makes sense.
$89 call, waived with repair 365-day labor warranty Genuine OEM parts
Quick answer. A Sub-Zero sealed system is the closed refrigeration loop — compressor, condenser, evaporator, and refrigerant — that actually produces cold. When it fails, the unit runs warm even while the compressor hums, builds odd frost patterns, or runs almost continuously. Adding refrigerant on a hunch never fixes it. We confirm any compressor or sealed-system fault with manifold pressure readings and electrical tests before quoting, so you never pay for major work on a guess.
Signs of a sealed-system or compressor problem
Sealed-system faults are the quietest and most serious problems a built-in Sub-Zero can have, and they are easy to confuse with simpler issues like a dirty condenser, a stuck defrost cycle, or a failed fan. The pattern that should make you think sealed system is cooling that fades while the unit keeps trying — the compressor is clearly running, but the box never reaches temperature.
Below are the signals our Peninsula technicians weigh before any refrigerant work. None of them is proof on its own; together they tell us where to put the gauges.
- Refrigerator or freezer runs warm even though the compressor is plainly running and warm to the touch
- Compressor runs almost continuously and rarely cycles off, with high running temperature at the base
- Unusual frost: a small patch of heavy frost on part of the evaporator while the rest stays bare, or no frost at all when there should be
- A loud, laboring hum or a buzzing relay that clicks on and off as the compressor tries and fails to start
- On a dual-compressor unit, one side (fresh food or freezer) drifts warm while the other holds perfectly
How sealed-system diagnosis actually works

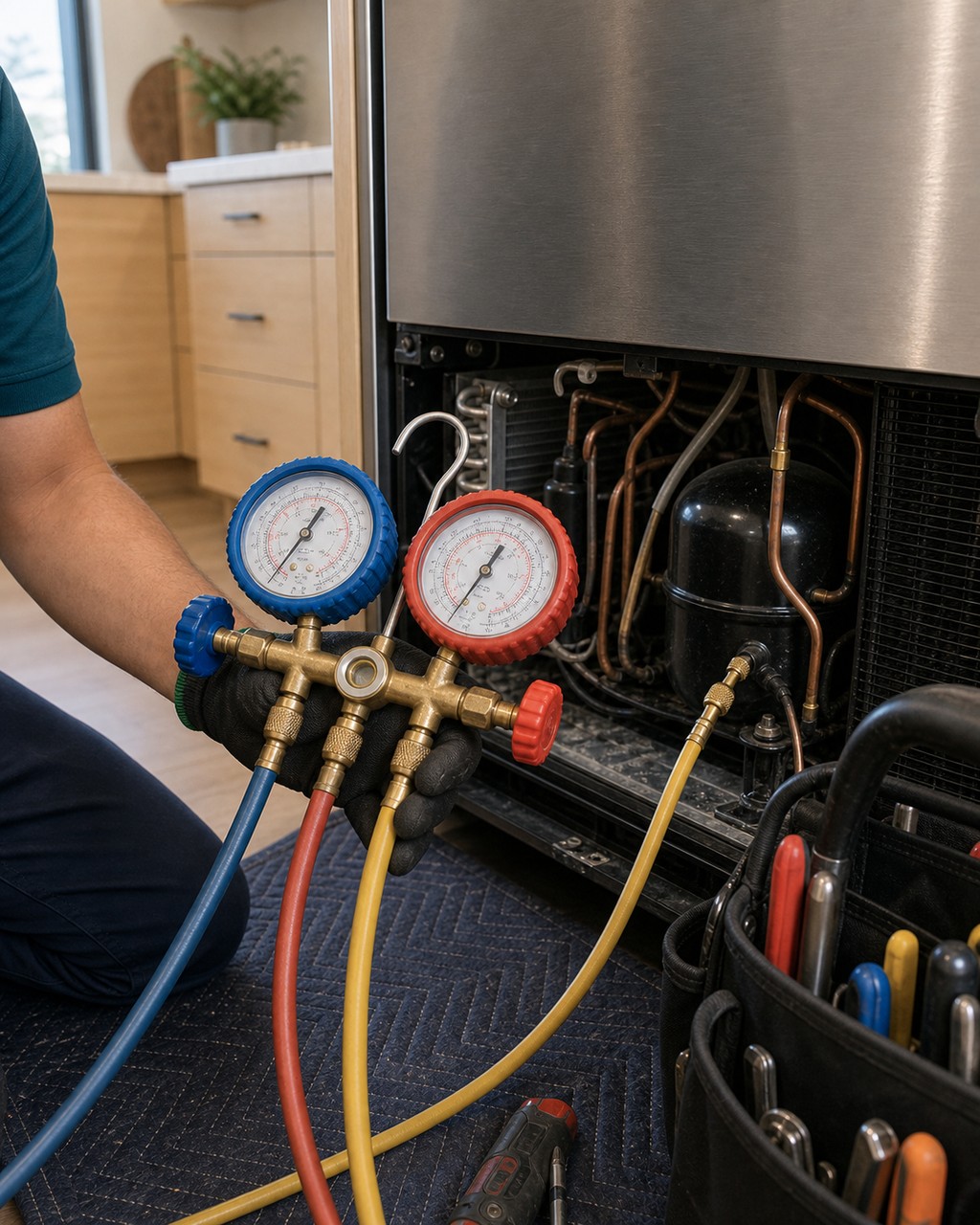

There is no shortcut and no plug-in code that proves a sealed-system fault by itself. The only honest diagnosis connects refrigeration manifold gauges to the system and reads the actual high- and low-side pressures while the unit runs, alongside electrical tests on the compressor windings, start components, and overload. Those numbers separate a true refrigerant leak, a restriction, or a weak compressor from the far more common culprits — a packed condenser, a tired evaporator fan, or a defrost fault — that mimic the same warm-box symptom.
This is also why we never simply top off refrigerant. A Sub-Zero sealed system is a precisely charged closed loop; if it is low, there is a leak, and adding gas without finding and repairing that leak just delays the same failure by a few weeks while the cost climbs. When the readings confirm a sealed-system repair, we explain exactly what failed, what the genuine OEM parts and labor involve, and put it in writing before we touch anything.
Repair vs. replace on older built-ins
Sealed-system work is the one Sub-Zero repair where repair-versus-replace is a fair question, and we will raise it with you rather than around you. On a built-in that is fifteen to twenty-five years old — common in Downtown and Friendly Acres homes and in long-held Emerald Hills and Farm Hills estates — a compressor or major refrigerant repair is a real investment, so the decision depends on the cabinet's overall condition, whether the rest of the unit is sound, and what a comparable built-in replacement would actually cost installed.
The good news is that a well-built Sub-Zero is usually worth saving. The sealed components are robust, genuine OEM parts are available for most model families, and a proper sealed-system repair backed by our 365-day labor warranty often costs a fraction of replacing a panel-ready built-in. Dual-compressor units — the PRO 48 and the classic 600 Series — add a real advantage here: because each compartment has its own sealed system, a failure on one side frequently leaves the other fully serviceable, which can make a targeted repair clearly the smarter call.
| Symptom | Likely area | What it means |
|---|---|---|
| Warm box, compressor running hot and constant | Weak compressor or refrigerant charge | Gauge and electrical test before any quote |
| Partial frost patch on the evaporator | Restriction or low charge from a leak | Leak search and repair, not a top-off |
| Buzz, click, then silence as it tries to start | Start components or compressor windings | Electrical test; sometimes a relay, sometimes the compressor |
| One side warm on a dual-compressor unit | That side's sealed system or compressor | Often a side-specific repair; other side keeps running |
| Cooling fine but very high run time | Condenser or fan, not always sealed system | Rule out the simple causes first, with proof |
Why proof-based, specialist diagnosis matters here
Sealed-system work is where a generalist most often gets it wrong, because the symptom — a warm refrigerator — has a dozen possible causes and only a few of them live in the sealed loop. An honest diagnosis rules out the cheap, common faults first and reaches for refrigerant tools only when the readings demand it. That discipline is the difference between a fan motor you actually needed and a compressor you did not.
Our work is independent and sealed-system-focused, built on years of hands-on diagnosis of built-in and integrated Sub-Zero units across San Mateo County. We bring genuine OEM Sub-Zero parts matched to your model and serial number, handle the unit and its custom panels carefully during access, and stand behind the repair. If the numbers say the box can be saved, we save it the right way; if they say replacement is the wiser spend, we will tell you that too.
What not to do while you wait
Do not let anyone add refrigerant without first proving a leak and finding it — a Sub-Zero is a sealed, precisely charged loop, and a blind top-off only buys a few weeks. And do not repeatedly unplug and replug a unit that hums but will not cool; short-cycling a struggling compressor can finish off a system that might otherwise have been repairable.
How we diagnose a Sub-Zero sealed system
A flat $89 service call covers a complete, evidence-based diagnosis — credited to your repair when you proceed.
- 1 Rule out the simple causes
We confirm the condenser, fans, defrost cycle, and door seals first, because a warm box is usually one of these — not the sealed system.
- 2 Observe the run pattern
We watch how the compressor cycles and runs, check base temperature, and map the frost pattern on the evaporator for clues.
- 3 Take pressure readings
When the evidence points to the sealed loop, we connect manifold gauges and read actual high- and low-side pressures while the unit runs.
- 4 Test the compressor electrically
We test the windings, start components, and overload to separate a weak compressor from a relay, a restriction, or a refrigerant leak.
- 5 Quote honestly, then repair
You get a written quote and a straight repair-versus-replace answer first; approved work uses genuine OEM parts and carries a 365-day labor warranty.
Upfront pricing
Sub-Zero repair pricing in Redwood City
The $89 service call is waived with your repair, and all labor is covered for 365 days.
| Sub-Zero service in Redwood City | Typical range | Time | Notes |
|---|---|---|---|
| Diagnostic / service call | $89 — waived with repair | 45–90 min | Model read, temps, airflow & visual checks |
| Door gasket / frost-line | $400–$900 | 1–3 h | Gasket availability; common humidity-related wear |
| Ice maker / water line | $275–$850 | 1–3 h | Inlet valve, fill tube, or ice module |
| Control board / sensor | $350–$1,250 | 1–4 h | Quoted after electrical proof |
| Compressor / sealed system | $1,450–$3,600 | 2–6 h + parts | Requires pressure & electrical evidence |
Draft ranges for planning; the final quote depends on model, parts, access, and the on-site diagnosis. The $89 service call is waived when you book the repair, and all labor carries a 365-day warranty.
Straight answers
Quick answers
How do you know it is the sealed system?
Only with proof. We connect manifold gauges, read high- and low-side pressures, and test the compressor electrically. That separates a true sealed-system fault from a dirty condenser, a bad fan, or a defrost problem that look identical from outside the box.
Can you just add refrigerant?
No, and we won't. A Sub-Zero sealed system is a closed, precisely charged loop. If it is low, there is a leak that must be found and repaired. A blind top-off only delays the same failure while the cost climbs, so we fix the cause instead.
What does sealed-system repair cost?
Diagnosis is a flat $89, waived when you book the repair. Sealed-system and compressor work sits at the higher end because of parts, refrigerant, and labor, but you always get a written quote first and 365 days of labor warranty.
Is an older Sub-Zero worth repairing?
Often yes. The cabinets are built to last, OEM parts are available, and a proper repair usually costs far less than replacing a built-in. On dual-compressor PRO 48 and 600 Series units, one side can fail while the other keeps running, which makes repair even more sensible.
Reviews
Sealed-system work, proven first
“PRO 48 with dual compressors — the freezer half failed. They proved it was the sealed system with real readings before committing to the work and got it back to spec. The kind of expertise a PRO 48 actually needs.”
“Our built-in Sub-Zero was running warm on the fridge side but fine in the freezer. The tech traced it to the sealed system, showed me the pressure readings, and had it holding temperature again. The $89 service call was credited to the repair and the labor is covered for a year — exactly what was quoted.”
Related Sub-Zero help
FAQ
Frequently asked questions
How do you repair a Sub-Zero compressor or sealed system?
We start by ruling out the common causes of a warm box — condenser, fans, defrost, seals — then, only when the evidence points there, connect manifold gauges to read actual pressures and test the compressor electrically. Those readings confirm whether it is a weak compressor, a refrigerant leak, or a restriction. We repair the proven fault with genuine OEM parts, recover and recharge correctly, and back the labor for 365 days.
Why is my Sub-Zero not cooling even though the compressor is running?
That combination is the classic sealed-system signal. If the compressor is plainly running and warm but the box never reaches temperature, the system may have lost refrigerant through a leak, developed a restriction, or have a compressor that no longer pumps efficiently. It can also be a packed condenser or a failed fan, which is why we confirm with pressure and electrical readings before quoting any major work.
What causes Sub-Zero compressor noise?
A laboring hum, a buzzing relay that clicks on and off, or new vibration near the base can come from the compressor, its start components, or its rubber mounts. Importantly, most alarming compressor noise turns out to be a mount or a fan rather than a failed compressor. We confirm the source with electrical tests so you don't pay for a compressor you don't need.
Can you just add refrigerant to fix the cooling?
No. A Sub-Zero sealed system is a closed, precisely charged loop, so if it is low on refrigerant there is a leak somewhere that has to be located and repaired. Simply adding gas without finding the leak only restores cooling for a few weeks before the same failure returns, usually at greater total cost. We find and fix the cause instead of masking it.
What does sealed-system or compressor repair cost in Redwood City?
The diagnostic service call is a flat $89 and is waived when you book the repair. Sealed-system and compressor jobs sit at the higher end of the price range because they involve refrigerant recovery, genuine OEM parts, and skilled labor. You receive a written quote and a candid repair-versus-replace assessment before any work starts, and all labor carries a 365-day warranty.
Is it worth repairing the sealed system on a 15 to 25 year old built-in?
Frequently, yes. Sub-Zero cabinets are built to outlast their first sealed-system service, OEM parts remain available for most model families, and a proper repair usually costs a fraction of replacing a panel-ready built-in. We weigh the cabinet's condition and the rest of the unit honestly with you. On dual-compressor PRO 48 and 600 Series units, a single failed side often leaves the other fully usable, which strengthens the case for repair.
How do dual-compressor Sub-Zero units like the PRO 48 and 600 Series differ?
These flagship built-ins run two independent sealed systems — one for the refrigerator and one for the freezer. That means a fault on one side does not necessarily affect the other, so you might see the freezer hold perfectly while the fresh-food side drifts warm. It also tends to make repairs more targeted and economical, since we service the affected sealed system rather than the whole machine.
Do you serve sealed-system repairs across the Peninsula?
Yes. We are based in Redwood City and cover all of it — Emerald Hills and Farm Hills estates, the Redwood Shores bayfront, and Downtown and Friendly Acres homes — plus nearby San Carlos, Belmont, Menlo Park, Atherton, Woodside, and Foster City. We bring genuine OEM Sub-Zero parts matched to your model and serial number and offer same-day or next-day visits when scheduling allows.
Book your Sub-Zero repair in Redwood City
Call (650) 800-5431 for a same-day or next-day visit, or book online. $89 service call, waived with your repair.
